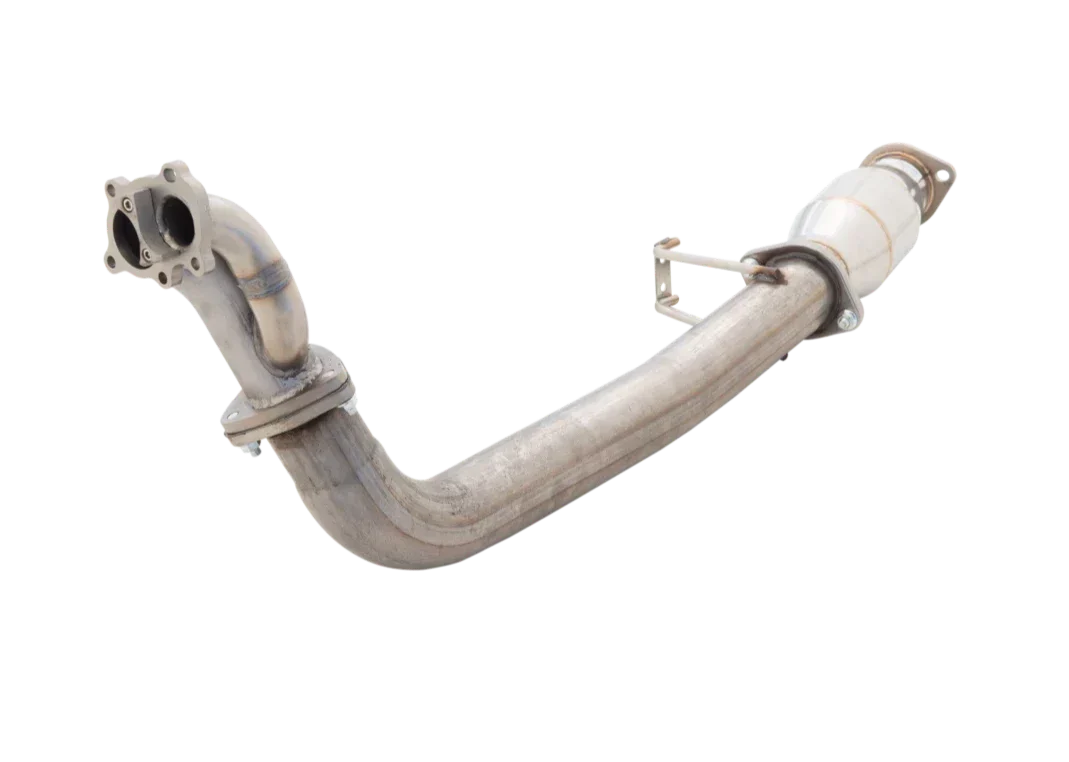

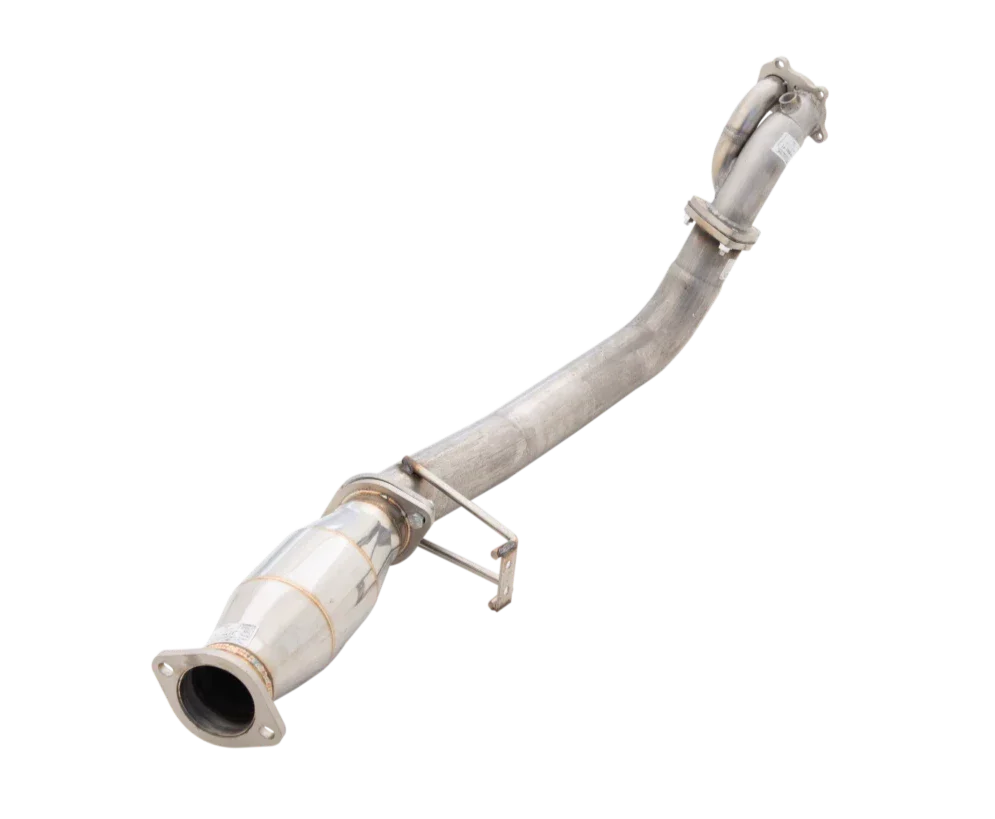

XForce Split Dump Pipe & 100-Cell High-Flow Cat Kit - Nissan S14 & S15 200SX - E4-NS01-KITB
Optimize your turbocharger's efficiency with the XForce Split Dump Pipe and High-Flow Catalytic Converter kit, specifically designed for SR20DET-powered Nissan Silvia S14 and S15 models. This high-performance front-end kit replaces the restrictive factory dump pipe and catalytic converter. The split dump design features a 2.5" outlet that separates wastegate gases from the main turbine flow, significantly reducing turbulence and backpressure at the turbocharger exit. Combined with a 3" 100-cell metallic high-flow catalytic converter, this kit allows for faster turbo spool-up, improved throttle response, and increased power and torque across the entire rev range.
What's in the Box?
- 1x Split Dump Pipe (2.5" Outlet)
- 1x 3" 100-Cell High-Flow Metallic Catalytic Converter
- Installation Gaskets & Hardware
Features:
This product offers the following high-performance features:

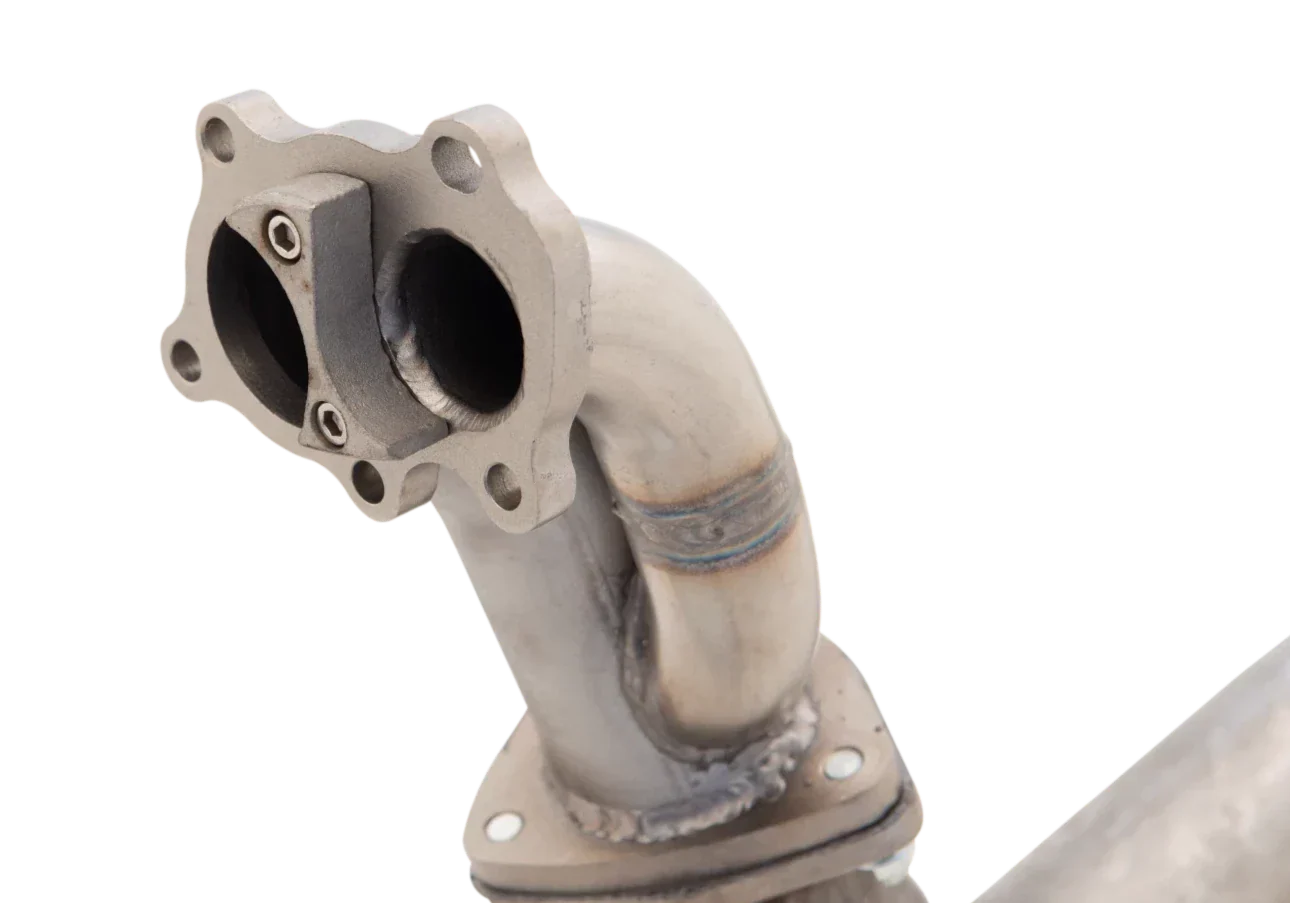

- Split Dump Design: Effectively isolates internal wastegate gases to prevent exhaust turbulence, resulting in smoother flow and quicker boost response.
- 100-Cell Metallic High-Flow Cat: Features a high-efficiency race-style substrate that maximizes exhaust gas velocity while providing significantly less restriction than factory units.
- Raw 409 Stainless Steel: Manufactured from industrial-grade 409 stainless steel for superior heat resistance and long-term durability in high-performance applications.
- 3" Main Pipework: The catalytic converter section features full 3-inch mandrel-bent piping to maintain consistent flow into your cat-back system.
- Bolt-On Performance: Designed to bolt directly to the factory turbocharger and line up with aftermarket 3-inch cat-back exhaust systems.
Specifications:
- Make: Nissan
- Model: Silvia / 200SX (S14 & S15)
- Engine: SR20DET (2.0L Turbo)
- Part Number: E4-NS01-KITB
- Material: 409 Stainless Steel (Raw Finish)
- Pipe Size: 3 Inch (76mm) Catalytic Converter Section
- Dump Pipe: Split Design (2.5" Outlet)
- Cat Type: 100-Cell Metallic
Important Information
- The image shown may not reflect the actual product
- Shipping times may vary depending on destination and stock availability
- Tuning: An ECU re-tune is highly recommended after installation to ensure optimal engine safety and performance.
Vehicle Applications:
Vehicle Applications:
| Make | Model | From | To | Body | Series | Engine | Variant | Drivetrain |
|---|---|---|---|---|---|---|---|---|
| NISSAN | ||||||||
| NISSAN | SILVIA / 200SX | 1994 | 1998 | Coupe | S14 | SR20DET | 2.0L Turbo | Aero / Spec-R | RWD |
| NISSAN | SILVIA / 200SX | 1999 | 2002 | Coupe | S15 | SR20DET | 2.0L Turbo | Spec-R / GT | RWD |
| Product Type | Warranty Period |
|---|---|
| 304 & 201 Stainless Steel Exhaust Systems | 60 Months |
| Accessories | 12 Months |
| Catalytic Converters | 12 Months |
| Electronic Products (Including SmartBox) | 12 Months |
| Mild Steel & 409 Stainless Steel Exhaust Systems | 24 Months |
| Mild Steel Headers | 12 Months |
| Stainless Steel Headers | 24 Months |
| Universal 304 Stainless Steel Mufflers | 24 Months |
| Universal Mild Steel & 409 Stainless Steel Mufflers | 12 Months |
