$163.06

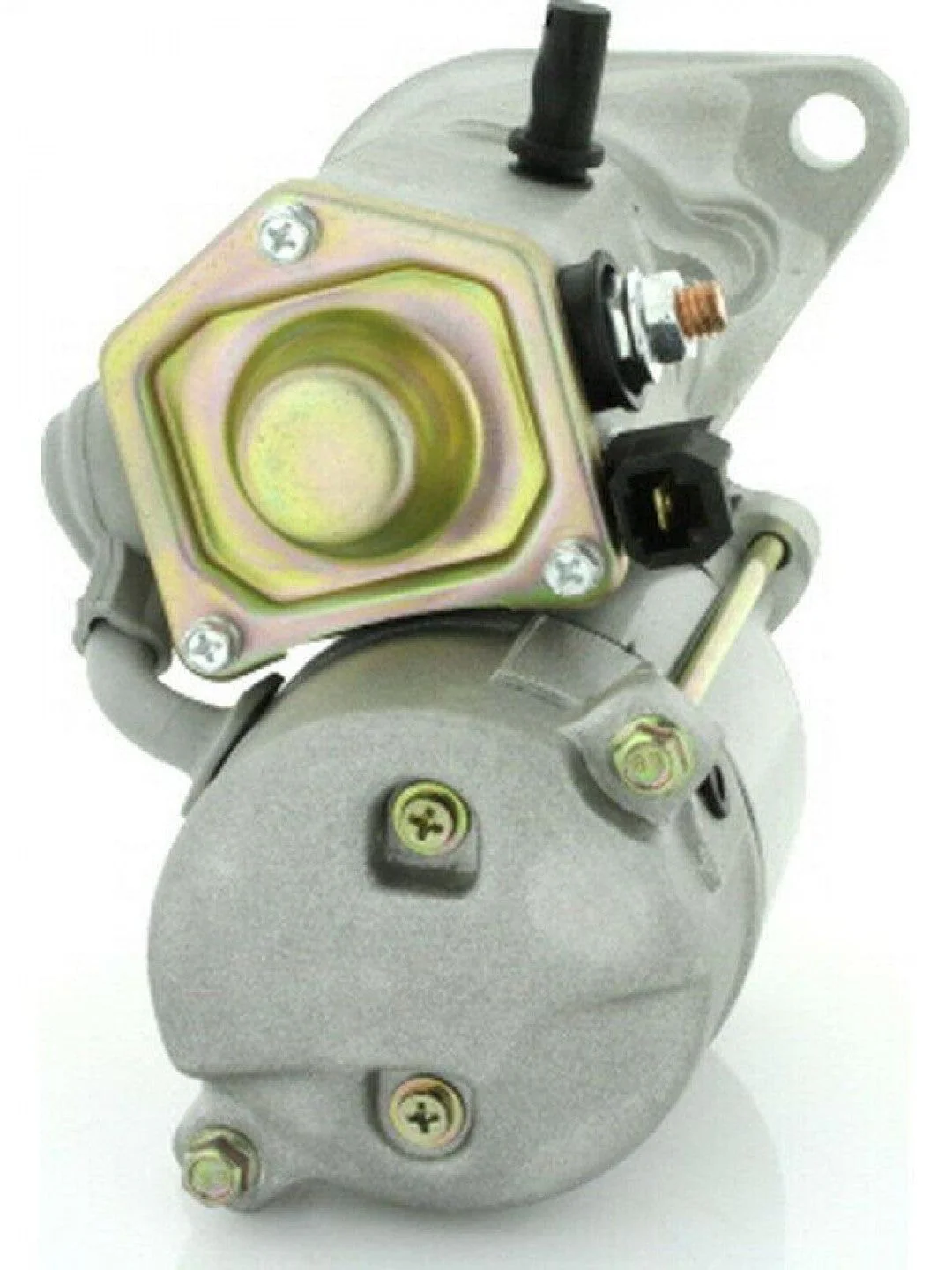

Jaylec - Starter Toyota Hilux Forklift 12 Volts 9Th 4Y 22R 1988 - 1997—
$163.06
The Story
| Specifications | |
| Voltage | 12V |
| Kilowatt | 1.4kW |
| Number of Teeth | 9T |
| Pinion Diameter | 29mm |
| Rotation | CW |
| Pinion at Rest | 18mm |
| Flange Diameter | 74mm |
| Mount Hole Center to Center | 115mm |
| Mount Hole Diameter | 11mm |
| Overall Length | 190mm |
| Oil Sealed | |
| Series | |
| Ground | NEGATIVE |
| Housing Index | FIXED |
| Weight (Kg) |
Cross-reference parts
- 2810003030 ,
- 2810074090 ,
- 2810074050 ,
- 2810062021 ,
- 2810074070 ,
- 2810074021 ,
- 2810074100 ,
- 2810074020
