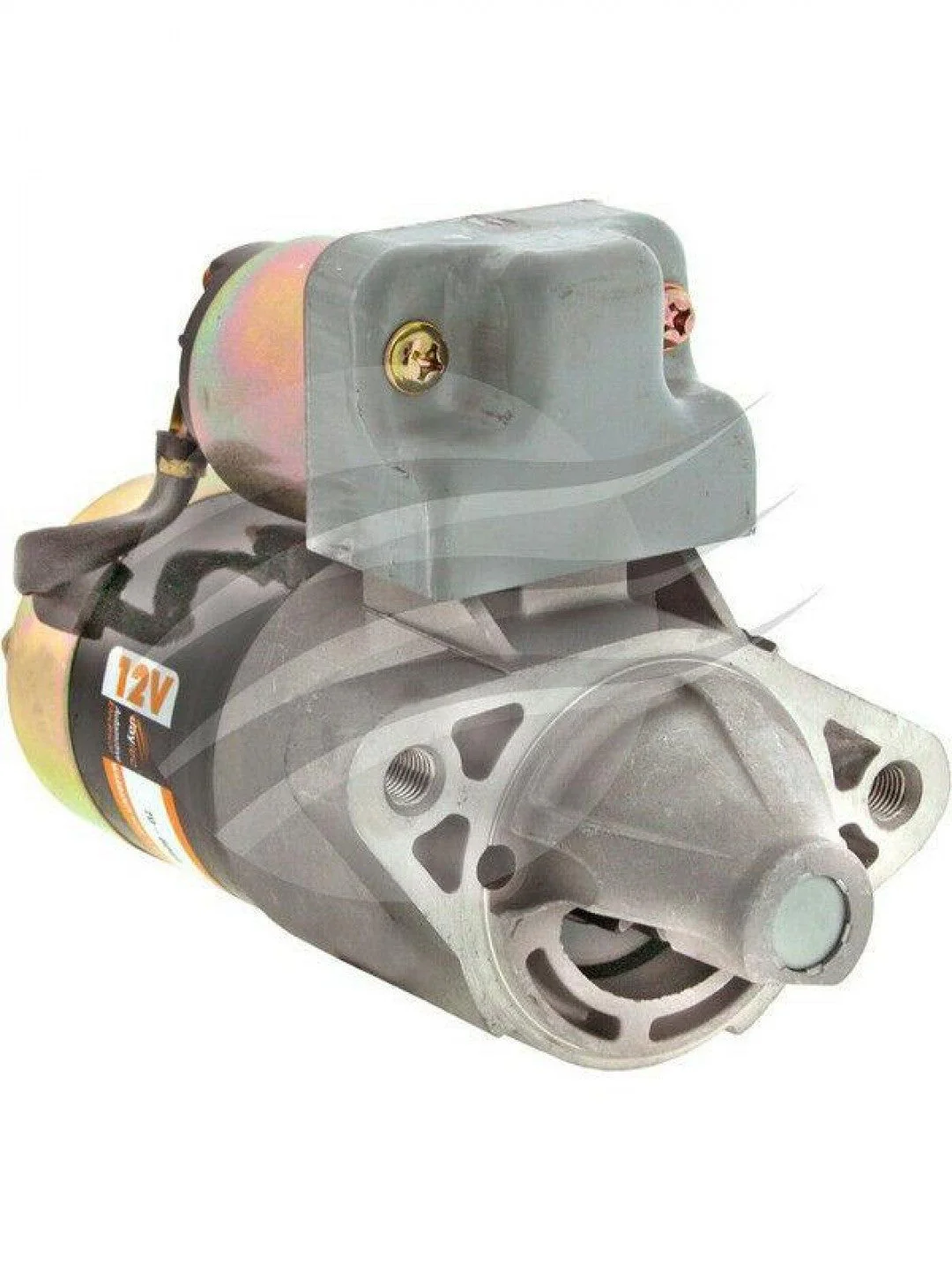

Jaylec - Starter Suzuki 1999 - On Grand Vitara 12 Volts 8Th G16B
HomeStore

Jaylec - Starter Suzuki 1999 - On Grand Vitara 12 Volts 8Th G16B

Jaylec - Starter Suzuki 1999 - On Grand Vitara 12 Volts 8Th G16B

$137.87
Jaylec - Starter Suzuki 1999 - On Grand Vitara 12 Volts 8Th G16B—
$137.87

The Story

Specifications
Voltage 12V
Kilowatt 1.4kW
Number of Teeth 8T
Pinion Diameter 28mm
Rotation CW
Pinion at Rest 5mm
Flange Diameter 66mm
Mount Hole Center to Center 97mm
Mount Hole Diameter M10
Overall Length 215mm
Oil Sealed
Series
Ground NEGATIVE
Housing Index FIXED
Weight (Kg)

Cross-reference parts
  • 3110077E11
    • ,
  • M0T85681
    • ,
  • M0T85681ZC
    • ,
  • M001T79581
    • ,
  • M000T85881
    • ,
  • M000T85681ZC
    • ,
  • M1T76481
    • ,
  • M0T85881
    • ,
  • M001T76481
    • ,
  • M1T79581
    • ,
  • M000T85681
    • ,
  • 3110077E10
    • ,
  • 3110077E20
    • ,
  • 3110077E20000
    • ,
  • 1A5018400
    • ,
  • 3110067D10
    • ,
  • 3110077E10000
    • ,
  • 3110077E11000
    • ,
  • 3110077E22
    • ,
  • 3110065DA0
