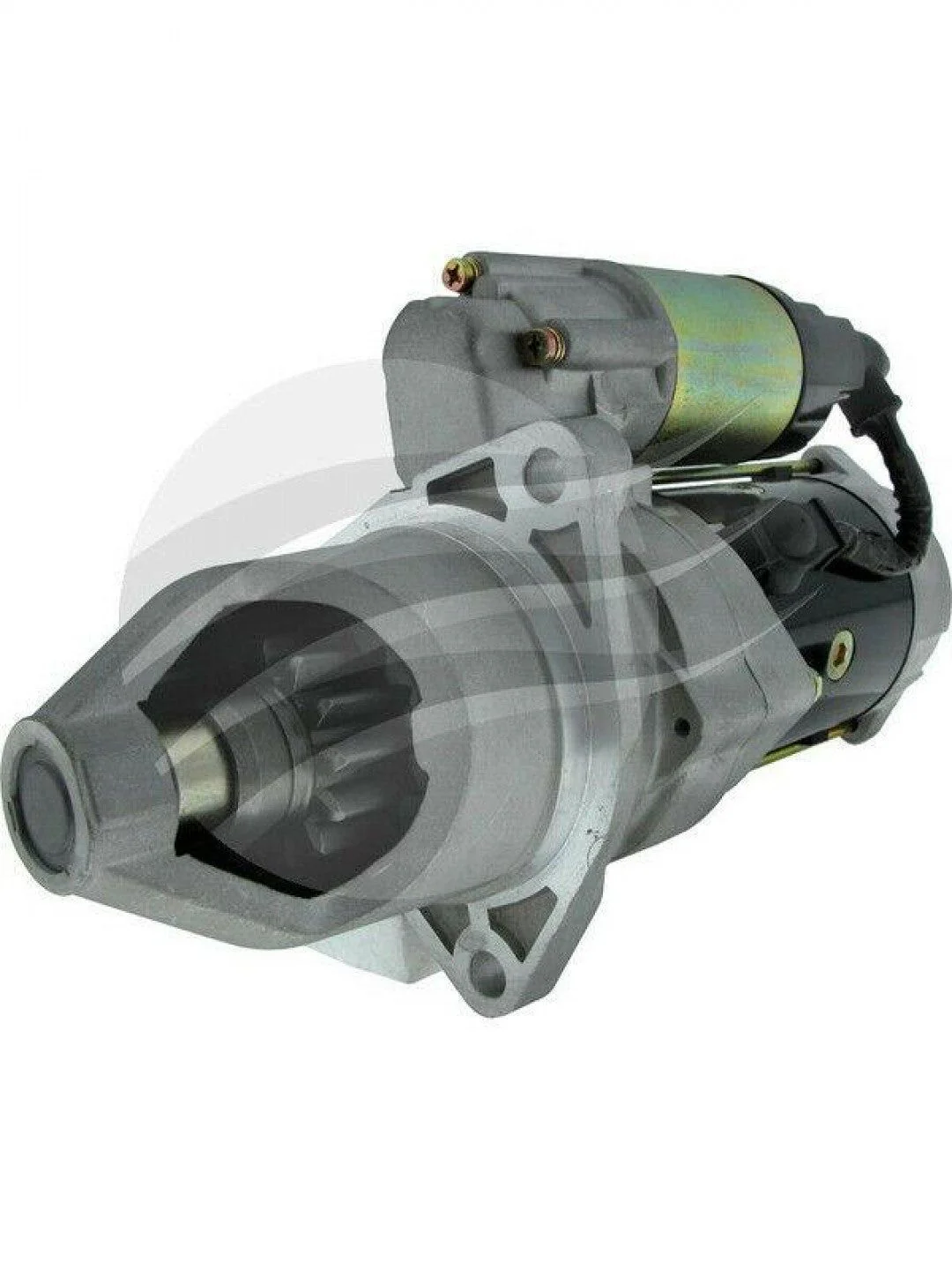

Jaylec - Starter Mit Fuso 8Ds9 24 Volts 13Th 8Dc9 8Dc10 8Dc11 Fv415
HomeStore

Jaylec - Starter Mit Fuso 8Ds9 24 Volts 13Th 8Dc9 8Dc10 8Dc11 Fv415

Jaylec - Starter Mit Fuso 8Ds9 24 Volts 13Th 8Dc9 8Dc10 8Dc11 Fv415

$149.17

Original: $426.20

-65%
Jaylec - Starter Mit Fuso 8Ds9 24 Volts 13Th 8Dc9 8Dc10 8Dc11 Fv415—

$426.20

$149.17

The Story

Specifications
Voltage 24V
Kilowatt 5.0kW
Number of Teeth 13T
Pinion Diameter 55mm
Rotation CW
Pinion at Rest 60mm
Flange Diameter 100mm
Mount Hole Center to Center 136 x 119 x 119mm
Mount Hole Diameter 13mm
Overall Length 384mm
Oil Sealed
Series
Ground NEGATIVE
Housing Index FIXED
Weight (Kg) 12.5

Cross-reference parts
  • 1585263012
    • ,
  • M002T30581
    • ,
  • M2T30581
    • ,
  • M2T41586
    • ,
  • M3T33181
    • ,
  • M2T49189
    • ,
  • M2T30586
    • ,
  • M002T42381
    • ,
  • M002T49181
    • ,
  • M003T33182
    • ,
  • M002T30586
    • ,
  • M2T41581
    • ,
  • M003T33181
    • ,
  • M003T33183
    • ,
  • M003T29681
    • ,
  • M002T49189
    • ,
  • M3T33182
    • ,
  • M2T49181
    • ,
  • M3T33183
    • ,
  • M3T29681
    • ,
  • M002T41586
    • ,
  • M002T30481
    • ,
  • M2T30481
    • ,
  • M002T41581
    • ,
  • 3110080091
    • ,
  • 31100A7303
    • ,
  • 3100080X51000
    • ,
  • 3110080X51
    • ,
  • 3110073031
    • ,
  • 3110080092
    • ,
  • 3110073034
    • ,
  • 3110080X51000
    • ,
  • 3110073010
    • ,
  • 3110073035
    • ,
  • 3100080X51
    • ,
  • 3110080094
    • ,
  • 3110073036
    • ,
  • 3110082C11
    • ,
  • 3110073030
    • ,
  • 3110073033
