$107.07

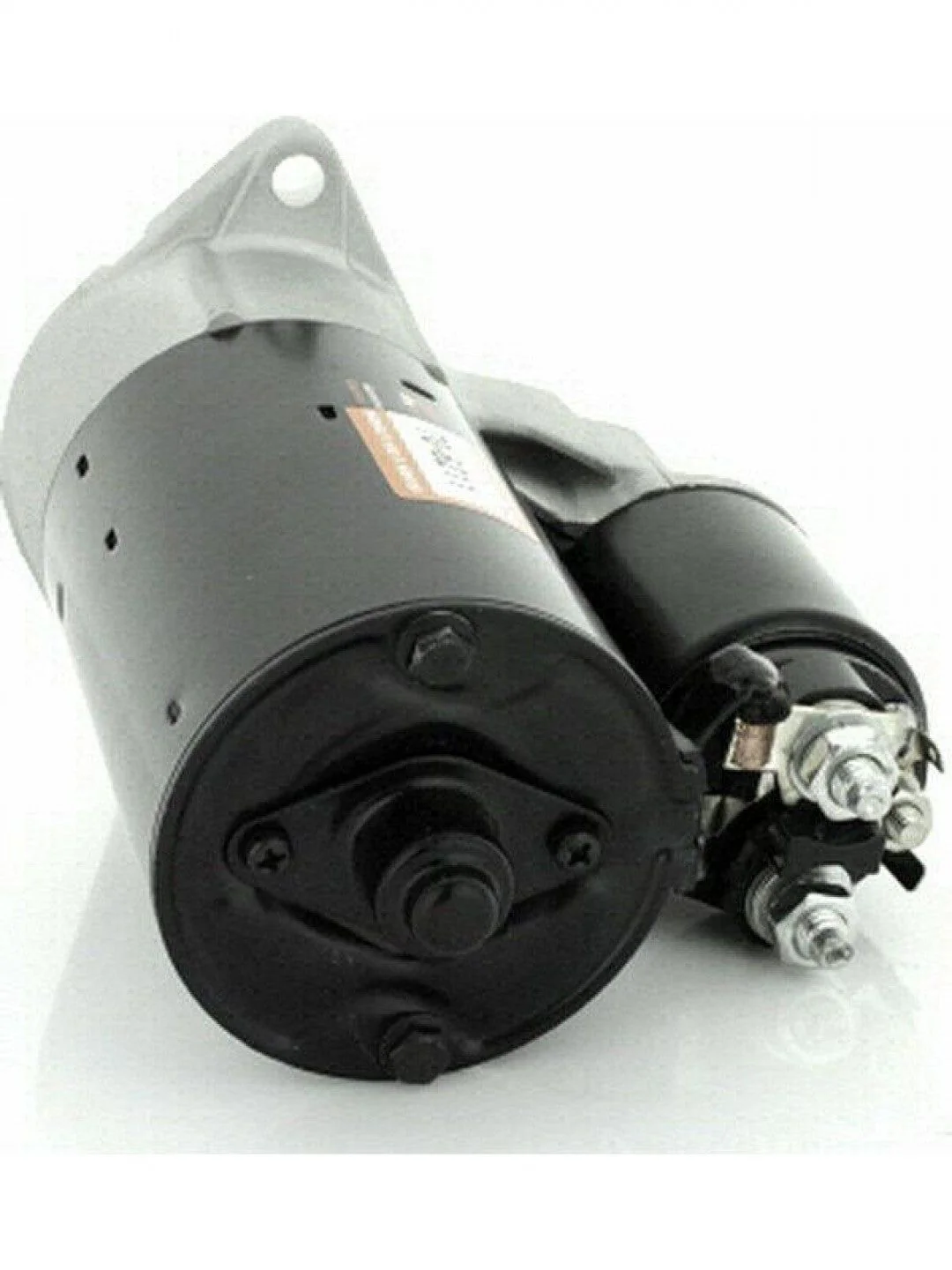

Jaylec - Starter Holden Barina Astra Z18Xe X18Xe F15S3 T18Sed A15S—
$107.07
The Story
| Specifications | |
| Voltage | 12V |
| Kilowatt | 1.2kW |
| Number of Teeth | 9T |
| Pinion Diameter | 25mm |
| Rotation | CW |
| Pinion at Rest | 19mm |
| Flange Diameter | 68mm |
| Mount Hole Center to Center | 105mm |
| Mount Hole Diameter | 9mm |
| Overall Length | 215mm |
| Oil Sealed | |
| Series | |
| Ground | NEGATIVE |
| Housing Index | FIXED |
| Weight (Kg) |
Cross-reference parts
- 25182244 ,
- 96952006 ,
- 96469963 ,
- 96550792 ,
- 96843578 ,
- 25186107 ,
- 25187957 ,
- 96208782 ,
- 71739718 ,
- 9190838 ,
- 9115192 ,
- 09130838 ,
- 90421877 ,
- 93171936 ,
- 09512051 ,
- 1202137 ,
- 6202016 ,
- 9115197 ,
- 90543871 ,
- 1202142 ,
- 09163856 ,
- 1202172 ,
- 6202075 ,
- 1202173 ,
- 93604828 ,
- 90508036 ,
- 90543872 ,
- 09115192 ,
- 9130838 ,
- 1202128 ,
- R1040008
Description
| Specifications | |
| Voltage | 12V |
| Kilowatt | 1.2kW |
| Number of Teeth | 9T |
| Pinion Diameter | 25mm |
| Rotation | CW |
| Pinion at Rest | 19mm |
| Flange Diameter | 68mm |
| Mount Hole Center to Center | 105mm |
| Mount Hole Diameter | 9mm |
| Overall Length | 215mm |
| Oil Sealed | |
| Series | |
| Ground | NEGATIVE |
| Housing Index | FIXED |
| Weight (Kg) |
Cross-reference parts
- 25182244 ,
- 96952006 ,
- 96469963 ,
- 96550792 ,
- 96843578 ,
- 25186107 ,
- 25187957 ,
- 96208782 ,
- 71739718 ,
- 9190838 ,
- 9115192 ,
- 09130838 ,
- 90421877 ,
- 93171936 ,
- 09512051 ,
- 1202137 ,
- 6202016 ,
- 9115197 ,
- 90543871 ,
- 1202142 ,
- 09163856 ,
- 1202172 ,
- 6202075 ,
- 1202173 ,
- 93604828 ,
- 90508036 ,
- 90543872 ,
- 09115192 ,
- 9130838 ,
- 1202128 ,
- R1040008
